INTSUPERMAI Pneumatic 7-Head Concrete Floor Scabbler, Production Rates Above 40 m²/h, Vibration Level 4.96 m²/s, Pneumatic Concrete Chiseling Machine for Fast Reduction of Floor Levels

𝑵𝑶𝑻𝑬: 𝐂𝐮𝐬𝐭𝐨𝐦𝐞𝐫𝐬 𝐧𝐞𝐞𝐝 𝐭𝐨 𝐛𝐫𝐢𝐧𝐠 𝐭𝐡𝐞𝐢𝐫 𝐨𝐰𝐧 𝐚𝐢𝐫 𝐜𝐨𝐦𝐩𝐫𝐞𝐬𝐬𝐨𝐫 𝐭𝐨 𝐞𝐧𝐬𝐮𝐫𝐞 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐚𝐢𝐫 𝐩𝐫𝐞𝐬𝐬𝐮𝐫𝐞 𝐢𝐬 𝟎.𝟔𝟑𝐌𝐏𝐚.𝑨𝒕𝒕𝒆𝒏𝒕𝒊𝒐𝒏1. Do not press the chisel hard against the concrete surface. After starting, pull the handle back and forth. Otherwise, the machine will be damaged.2. The faster the speed, the shallower the depth. The slower you move, the deeper the drill.3. Each time can be chiseled 1-3mm deep, if you need 10mm depth, you need to chisel 3-4 times on the same plane.4. First, an air compressor with a displacement of 3 cubic meters per minute and a pressure level of 7 kilograms per square centimeter is matched. The air pressure can be adjusted to 7 kg pressure to work normally.5. The length of the air duct should be less than 10m, and if it is extended to 15m, the pressure will drop by 0.16kg/㎡6. Recommended air duct specification: 25/32'' fiber-reinforced PVC hose.7. Do not use the gouging machine, to be stored indoors. Place on a clean, dry-level surface. Cover it with canvas. Prevent water and dust from entering the machine, causing it to rust and wear. To avoid failure.8. Please take protective measures when using the machine. Such as wearing goggles, face masks, wear overalls, etc.𝑷𝒂𝒓𝒂𝒎𝒆𝒕𝒆𝒓𝒔Power: PneumaticHead: 7Size: 290×490×1270 MMWorking width: 29cmAir consumption: 1600L/ minNoise level DB: 97 dB Average equivalent of vibration level: 4.96㎡/ sAir compressor matching requirements: the pressure is 7 kg square centimeter, the displacement is 3 m³/ min𝑷𝒂𝒄𝒌𝒂𝒈𝒆 𝑪𝒐𝒏𝒕𝒆𝒏𝒕A INTSUPERMAI 7 Head Concrete Floor Scabbler

• Concrete Chisel Machine: the perfect vibration choice for applications with higher surface treatment and coating removal requirements. This powerful, sturdy and durable concrete scraping machine is equipped with an integral piston and high-quality tipped scabbling heads for ‘fracturing’ thicker, tough to remove concrete
• Fast Reduce of Ground Level: The pneumatic chisel can complete large-scale chiseling work in a short period. For example, the concrete strength is between C40-C50, the depth is 3mm, and the chiseling ability is 40-60 ㎡/h

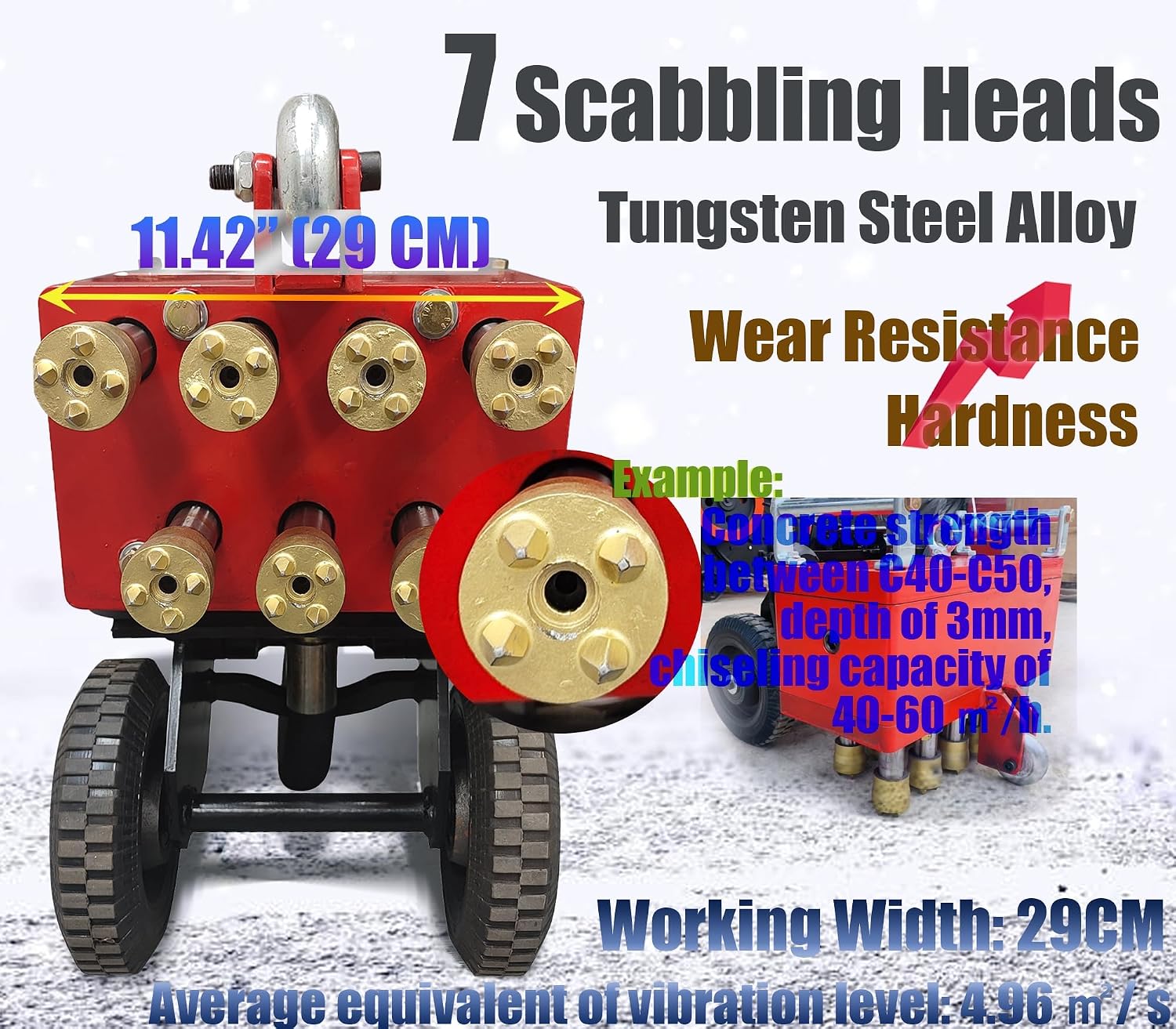

• Adapt to Different Concrete Strengths: 7 replaceable Tungsten Steel Alloy tipped scabbling heads with good wear resistance and hardness, long service life, can adapt to the processing needs of different concrete strengths
• Pneumatic Drive: Using the chiseling machine requires the connection of an air compressor, Air compressor matching requirements: the pressure is 7 kg/cm², and the displacement is 3 m³/ min. This power mode will not cause any damage to the foundation body, ensuring construction safety and structural integrity

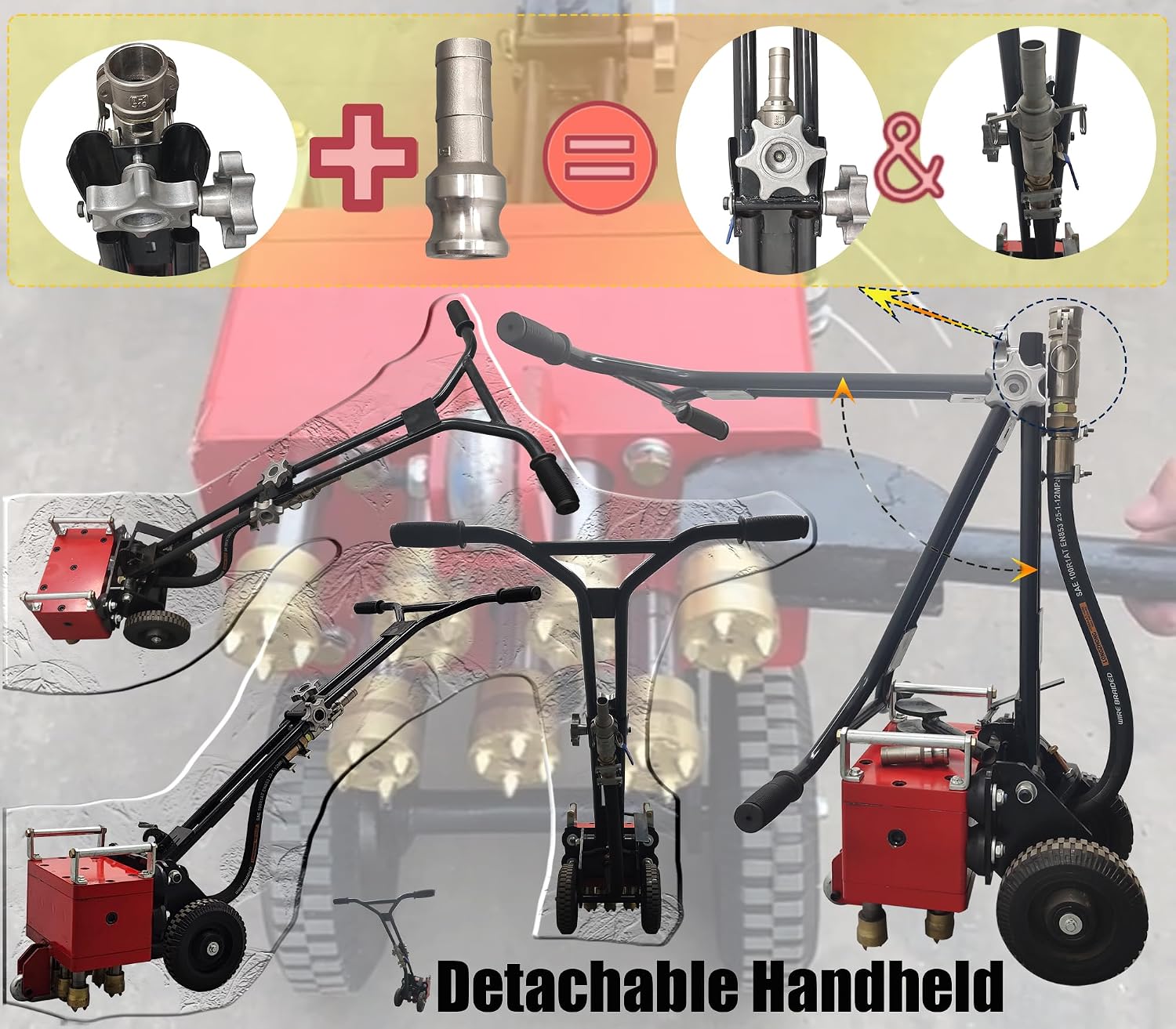

• Efficient Design: 29cm working width, 4.96 ㎡/s average equivalent of vibration level, detachable handle, 3 movable casters, easy for operators to use and carry, providing control for heavy-duty vehicles, suitable for various construction environments
